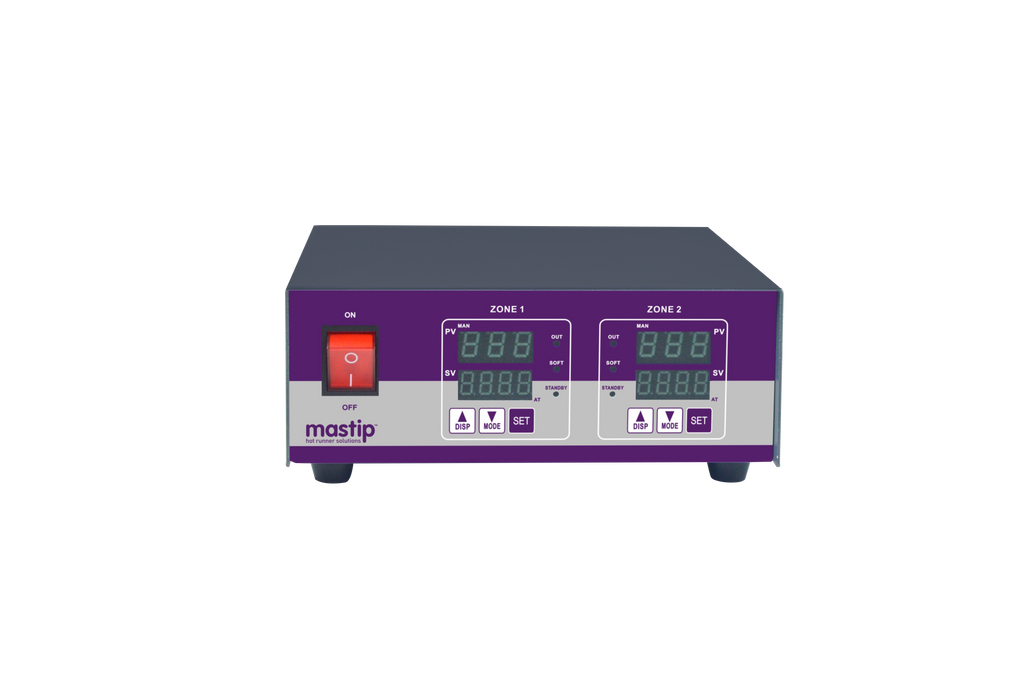

002 Zone CIS Integrated Temperature Controller
2-Zone Integrated Temperature Controller part #79-060-020
This product is to be used with 2 x 1 Zone 5 Pin Male Single Latch Cable (Part Number 79-075-010 not included).
Specifications
◆ Power requirements: AC85~265V, 50/60Hz
◆ Sensor type: J or K thermocouple
◆ Setting range: 0°C~450°C (32°F~842°F)
◆ Measurement accuracy: ±0.1%F.S
◆ Cold-junction compensation accuracy: ±1°C
◆ Control Mode: Auto PID or Manual
◆ Control Accuracy: ±0.1% of full scale
◆ Control Output Device: Triac.
◆ Load Capability: 10A /15A per zone, 240Vac
◆ Operating Temperature: 0°C~55°C(32°F~131°F)
◆ Operating Humidity: 10~80%, non-condensing
More information can be found via this link.
